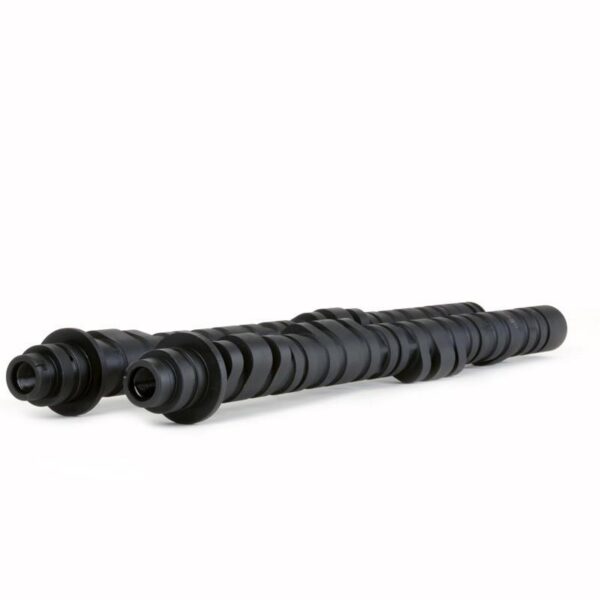

Skunk2 Tuner Cams Stage 2 Honda S2000 AP1 F20C AP2 F22C 305-05-0305

Description

12-15hp Gains. This cam provides HP and Torque gains throughout the entire powerband and is an excellent all-purpose cam for someone who already has bolt-ons.
Fitment:
Honda F20C1
Honda F22C1

Note:
Required: Tuner Series Valve Springs, Titanium Retainers, aftermarket ECU.
Intake Duration / Lift: 272° / 13.6mm
Exhaust Duration / Lift: 276° / 12.6mm
Intake Centerline: 99° ATDC
Exhaust Centerline: 110° BTDC
Valve Clearance (Intake / Exhaust): .009” / .010”
RPM Range: 1,500 – 9,100 rpm
HP Gains: 12 – 15 hp
Torque Gains: 15 – 18 lb-ft


Gain an extra 12-15 hp and retain your factory idle and low-speed emissions with Skunk2’s Tuner Series Stage 2 Camshafts, our premier line of high-performance camshafts for Honda’s F-series S2000 engines. Tuner Series Stage 2 Camshafts are designed to optimize horsepower and torque on engines featuring free-flowing intake and exhaust tracts, increased compression, and upgraded valvetrain and are the result of Skunk2’s years’ worth of drag racing and road racing efforts. No other line of high-performance camshafts even comes close to Skunk2’s Tuner Series.

Skunk2 camshafts deliver unparalleled power as a result of continual, extensive development and testing. By utilizing advanced manufacturing techniques and the latest computerized simulation and modeling equipment, Skunk2 camshafts are able to deliver maximum power across the entire powerband. Skunk2 designs and tests all of its camshafts in-house to ensure the highest quality and performance. Each camshaft is manufactured from high-strength, hollow, iron-alloy cores featuring cutting-edge profiles that emphasize an exceptional idle and low emissions. All Skunk2 camshafts are ground to exact specifications using state-of-the-art CNC cam grinding machines equipped with cubic-boron grinding wheels and feature hardened, wear-resistant lobes and surfaces.

Skunk2’s Tuner Series Camshafts for Honda’s F-series, S2000 engines also feature Fast Ramp and AMAX profile technology, which increases overall performance and results in unmatched response from idle to redline. AMAX technology simply maximizes the area under the lift curve but without compromising reliability or valvetrain stability. Skunk2’s profiles feature more duration than competitors’ at lifts above 1mm, resulting in greater efficiency and more power. And thanks to Fast Ramp, the same technology used in Formula One racing, seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valvetrain longevity.

Skunk2 camshafts designs are the direct result of our years of drag racing and road racing efforts. In addition to each Skunk2 project car and race vehicle, the world’s top road racing and drag racing teams have relied on Skunk2 camshafts for years..
